Bobrick B-824 SureFlo® Counter Mounted Automatic Liquid Soap Dispenser

Bobrick B-824 SureFlo® Counter Mounted Automatic Liquid Soap Dispenser

Top-fill counter-mounted automatic liquid soap dispenser dispenses adjustable amount (.4 to 3 ml) of commercially marketed all-purpose bulk liquid hand soaps of various viscosities and non iodine based soaps; do not use alcohol based sanitizers.
Spout assembly is bright polished chrome plated ABS plastic with integral stem to accommodate up to 2" (50mm) thick counter tops with 1-3/8" (35mm) diameter mounting hole.
Unit is equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling.
Unit has LED indicators to show when unit has been activated and low battery life.
Unit has IR Sensor located on PC board housed in water-resistant ABS plastic housing.
Activation lens allows for defined activation range to eliminate chance of false activation during hand washing.
Portion control knob allows field adjustment of desired volume of soap dispensed per hand wash.
Unit is equipped with an automatic system flush button to allow for cleaning and maintenance.

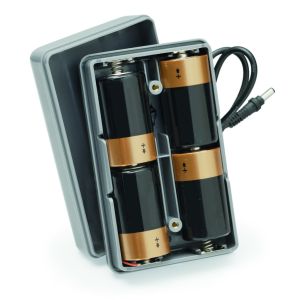

Battery Pack uses 4 “D” cell batteries (NOT included) providing a battery life of up to 200,000 cycles or 2 years.
Optional A/C adapter available, order Bobrick Part No. 3974-57.
Unit is not compatible with above the counter sink rims greater than 1" W x 1-1/2" H (25 x 40mm) or 2-1/2" W x 1/2" H (65 x 12.7mm); sink rim must not come into contact with activation area.
Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including liquid and lotion soap and synthetic detergents.
Acceptable soaps need to have a viscosity in the range of 1cP to 19,000cP (centipoise).

Container Capacity: 34 Fluid Ounces
Spout Length: 6-3/4"

Maximum Counter Top Mounting Thickness: 2"

AC External 6 Volt Adapter is available as an optional accessory that can be ordered to eliminate the use of batteries:
Order Bobrick Part No. 3974-57 (Single Adapter)
Order Bobrick Part No. 824-201 (Multi Adapter Kit)
