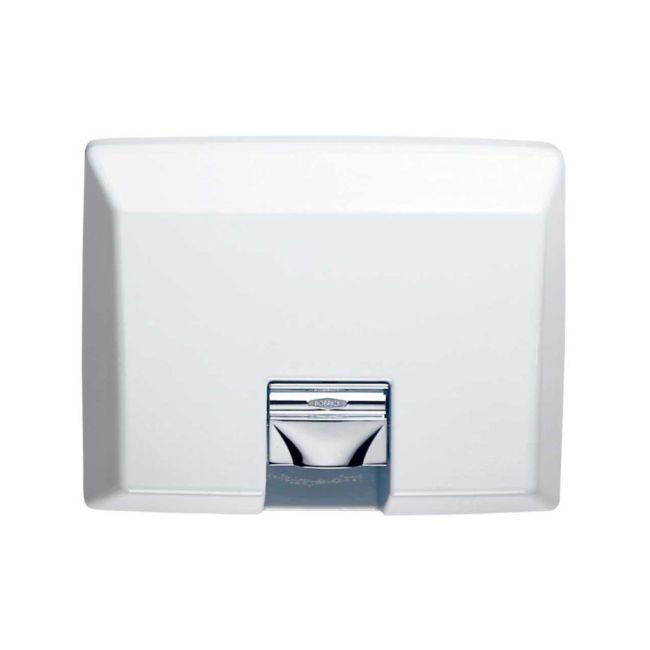

Bobrick B-750 AirCraft® Recessed Automatic Hand Dryers White

Bobrick B-750 AirCraft® Recessed Automatic Hand Dryers White

Bobrick AirCraft® Series

Recessed automatic 115 volt or 230 volt hand dryer shall have a one-piece, cast-iron cover finished in high-gloss, acid-resistant, multicoat vitreous enamel.
Cover shall project no more than 4" (100mm) from wall to comply with barrier free accessibility guidelines (including ADAAG in the U.S.A.).
Cover shall be equipped with a two-position, self-returning, chrome plated, vandal-resistant air-outlet nozzle that adjusts for hand and face drying and automatically returns to hand-drying position after face drying; prevents vandals from pouring liquids into dryer.
Cover shall have no exposed air-inlet grille.
One-piece cast aluminum base shall incorporate concealed, vandal-resistant air-inlet vanes on both sides and bottom.
Motor shall be 1/10 hp, universal type on resilient mounting with sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end; equipped with automatic thermal-overload switch.
Heating element shall be located on inlet side of fan, shall heat air without hot spots, be inaccessible to vandals, and protected by an automatic thermal-overload switch.
Electronic sensor shall automatically turn dryer on when hands or self-returning nozzle are held under air-outlet opening and across path of sensor.
Dryer will turn off automatically when hands are removed or self-returning nozzle is released.
Sensor shall automatically shut dryer off approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed across air outlet opening.
After inanimate object is removed, electronic sensor shall automatically reset itself and dryer shall operate normally.
Unit shall be cULus Listed, VDE approved, CE marked.
Unit shall comply with EU Directive "Restriction of Hazardous Substance" (ROHS) requirements for non-use of certain hazardous substances in the production of electronic products.

Voltage Options: 115V, 230V

Hand Dryer Measurement: 15 1/4" Wide x 11 7/8" High, Extends 4" from Wall

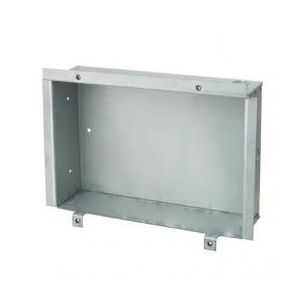

Rough Wall Opening: 13 3/4" (350mm) Wide x 9 1/2" (240mm) High, 3 3/4" (95mm) Minimum Recessed Depth
