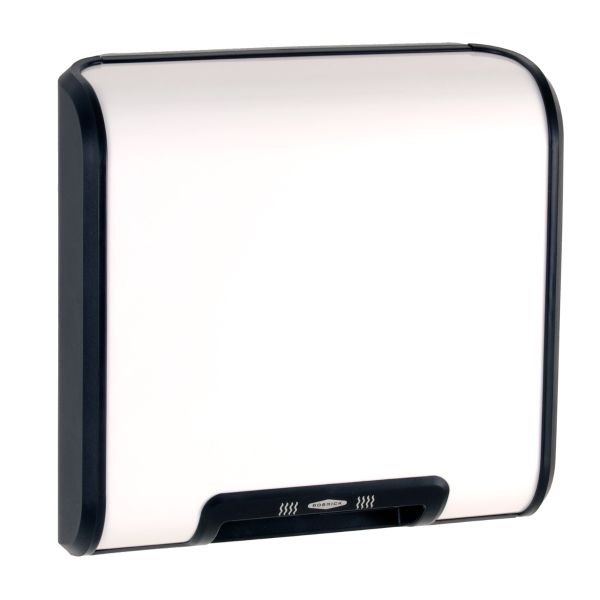

Bobrick B-7120 115V TrimDry™ Surface Mounted Automatic Hand Dryer White

Bobrick B-7120 115V TrimDry™ Surface Mounted Automatic Hand Dryer White

Bobrick QuietDry™ Series, TrimDry™ Model

Surface mounted automatic 115 volt hand dryer shall have 22-gauge mild steel zinc plated with high-gloss white epoxy paint finish cover with UL 94-5VA black plastic trim and side panels.
Slim profile cover shall project no more than 4" (100mm) from the finished face of wall to comply with accessible design guidelines (including ADAAG in the U.S.A.).
Unit shall be equipped with dual air outlets that provide a swirling circulation of airflow for (less than 25 seconds) hand dry.
Motor shall be 1/7 hp, universal type on resilient mounting with sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end; equipped with automatic thermal-overload switch.
Heating elements shall be located on outlet side of fan, shall heat air without hot spots, be inaccessible to vandals, and protected by an automatic thermal-overload switch.
Electronic sensor shall automatically turn dryer on when hands are held under air-outlet opening and across path of sensor.
Dryer shall turn off automatically when hands are removed.
Sensor shall automatically shut dryer off approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening.
After inanimate object is removed, electronic sensor shall automatically reset itself and dryer shall operate normally.
Unit shall be cULus Listed, and/or VDE approved, CE marked.
Unit shall comply with EU Directive "Restriction of Hazardous Substance" (ROHS) requirements for non-use of certain hazardous substances in the production of electronic products.

Voltage: 115V

Hand Dryer Measurement: 13 25/32" Wide x 13 19/32" High, Extends 4" from Wall
