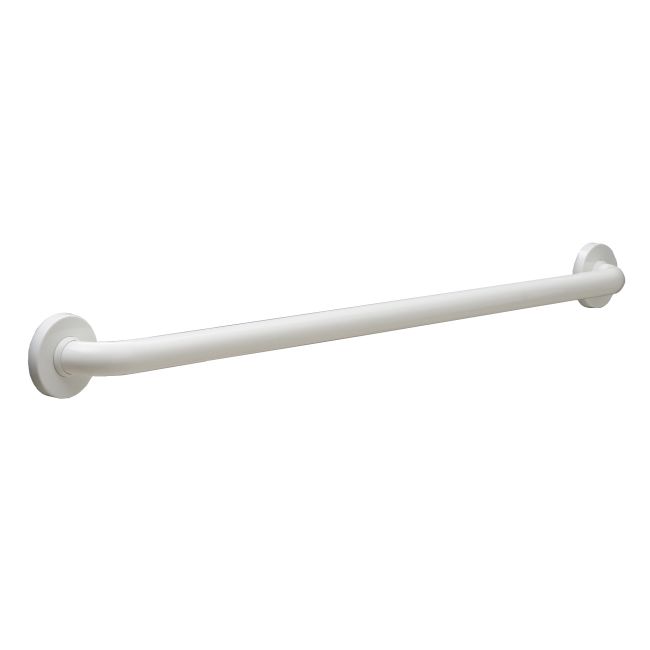

Bobrick B-580616x24 1¼" Diameter Vinyl Coated Grab Bar Concealed Mounting 24" Long

Bobrick B-580616x24 1¼" Diameter Vinyl Coated Grab Bar Concealed Mounting 24" Long

Vinyl-Coated Grab Bar shall be corrosion resistant, zinc coated steel pipe with vinyl antibacterial, biocompatible, and warm-to-the-touch coating.
Grab Bar shall have 1/8" (3mm) wall thickness, 1/8" (3mm) extruded plastic finish coating thickness, and 1-1/4" (32mm) outside diameter.
Clearance between the grab bar and wall shall be 1 1/2" (38mm).
Concealed Mounting Flanges shall be fiberglass reinforced nylon plate and equipped with four screw holes for attachment to wall.
Flange covers shall be fiberglass reinforced nylon with glossy finish, 3-1/4" (83mm) diameter, and shall snap over Mounting Flanges to conceal mounting screws.
Ends of grab bar shall pass through Concealed Mounting Flanges.
Bobrick grab bars that provide 1-1/2" (38mm) clearance from wall B-580616x18, B-580616x24, B-580616x36 can withstand loads of 450 pounds (204 kg) if properly installed. B-580616x42 can withstand loads of 330 pounds (150 kg) when properly installed, complying with accessible design (including ADAAG in the U.S.A.) for structural strength.

Straight Grab Bar Length: 24"

Mounting Kits, Fasteners and Anchors are NOT included with Bobrick grab bars and must be ordered separately as an optional accessory:

MOUNTING KITS - Bobrick grab bar screw mounting kit available for different types of installations.
One mounting kit is required for each flange.
Bobrick Part No. 252-30 - Consists of (3) 1/4" x 2 1/2" type-304 stainless steel round-head sheet-metal screws.

FASTENERS: Bobrick WingIt™ grab bar fastening system secures grab bars installed without backing in wall. Fastener to be used with 2 1/2" or deeper hollow walls with finished wall surfaces 1/4" to 1 1/2" thick. The fastener will support 300 lbs load.
One fastener is required for each flange.
Bobrick Part No. 251-4 - Consists of (3) 10–32 x 5/16" round-head, Phillips 18/8 stainless steel screws and (1) WingIt grab bar fastener.

ANCHORS: Bobrick grab bar anchor used for mounting to toilet partition.
One anchor is required for each flange.
Bobrick Part No. 2583 - Consists of (1) anchor for 3/4" to 1" thick toilet partition panel and stainless steel machine screws.
Bobrick Part No. 2586 - Consists of (1) anchor for 1/2" thick toilet partition panel and stainless steel machine screws.

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.
