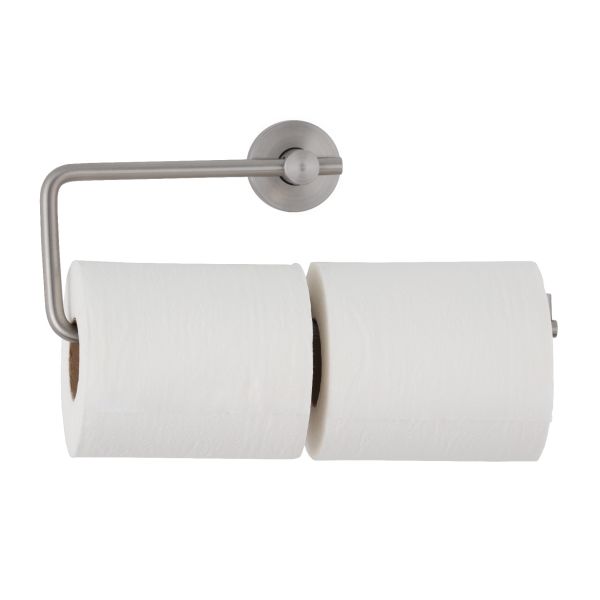

Bobrick B-547 Double Roll Toilet Tissue Dispenser Satin

Bobrick B-547 Double Roll Toilet Tissue Dispenser Satin

Cubicle Collection

Double Roll Toilet Tissue Dispenser is type-304 stainless steel with Satin finish.
Toilet Tissue Dispenser shall have 19mm (3/4") diameter post.
Dispenser bar is 9.5mm (3/8") diameter, secured to post with a concealed set screw allowing for right or left handed assembly.
Retaining pin is 6.4mm (1/4") diameter and pressed into Dispenser bar.
Concealed mounting flange shall be 5.6mm (7/32") thick stainless steel plate, 46mm (1 13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover.
Threaded flange cover is 1.4mm (17-gauge) stainless steel, 49mm (1 15/16") diameter and shall fasten over mounting flange to conceal mounting screws.
Post and mounting flange are to be machined as one piece.

Finish: Satin

Overall Dimensions: 10 5/8" Wide x 3 3/8" High, Projects 1 5/16" From Finish Face of Wall
