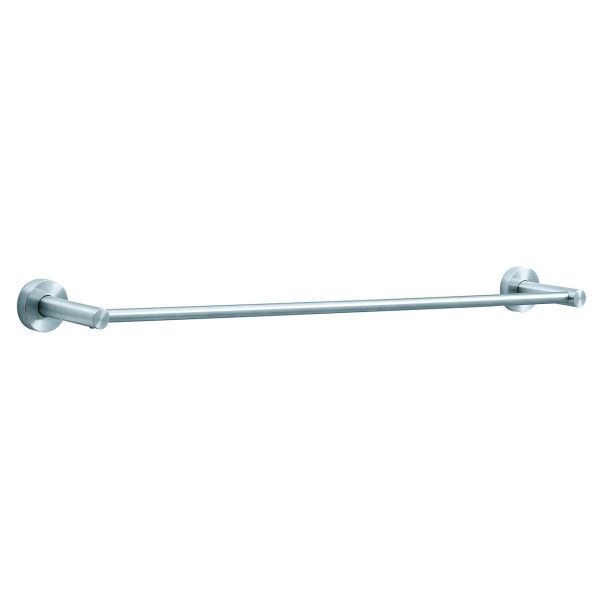

Bobrick B-545 Towel Bars Satin

Bobrick B-545 Towel Bars Satin

Cubicle Collection

Towel Bar is type-304 stainless steel with Satin finish.
Towel bar shall have two (2) 19mm (3/4") diameter posts.
Bar shall be 12mm (15/32") diameter secured to post with two (2) concealed set screws.
Concealed mounting flange shall be 6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover.
Threaded flange cover shall be 1mm (17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten over mounting flange to conceal mounting screws.
Post and mounting flange are to be machined as one piece.

Finish: Satin

Length Options: 18", 24"

Overall Dimensions: 18" or 24" Long x 1 15/16" High, Projects 3 3/4" From Finish Face of Wall
