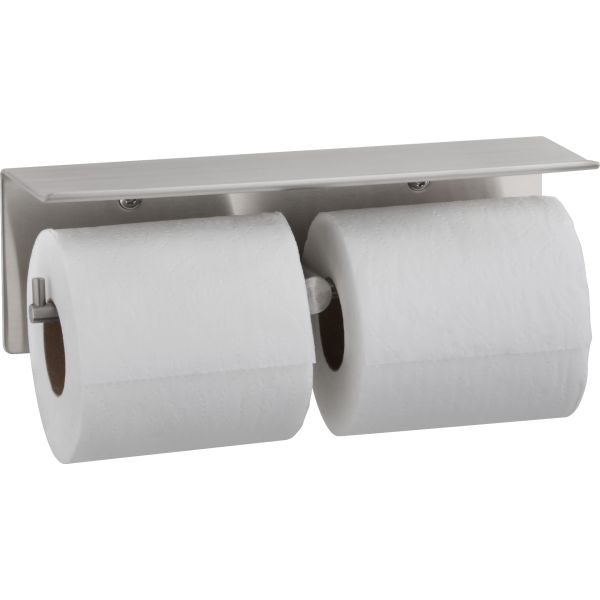

Bobrick B-540 Double Roll Toilet Tissue Dispenser with Shelf Satin

Bobrick B-540 Double Roll Toilet Tissue Dispenser with Shelf Satin

Cubicle Collection

Surface-mounted toilet tissue dispenser and utility shelf is Type-304, 14 gauge stainless steel with Satin finish.
Shelf shall have 1/4" (6mm) upward return front edge.
Toilet Tissue Dispenser shall have 3/4" (19mm) diameter Post.
Dispenser bar is 3/8" (9.5mm) diameter, secured to post with a concealed set screw.
Retaining pin is 1/4" (6.4mm) diameter and pressed into Dispenser bar.
Wall Plate equipped with two screw holes for attachment.
Post and Wall Plate are to be securely welded as one piece.
Dispenser Bar shall hold standard-core toilet tissue rolls up to 4 1/4" (110mm) diameter (500 sheets).
Item complies with one-hand-operation and continuous paper flow requirement of ADA.

Finish: Satin

Overall Dimensions: 11" Wide x 3 3/4" High, Projects 3 3/4" From Finish Face of Wall
