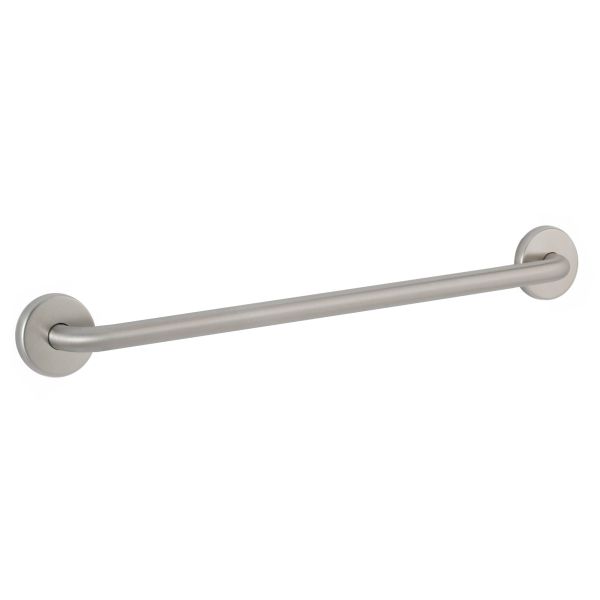

Bobrick B-530 Heavy Duty Towel Bars

Bobrick B-530 Heavy Duty Towel Bars

Heavy duty towel bar shall be type-304 stainless steel with satin finish.
Towel bar shall have 18-gauge (1.2mm) wall thickness and 1" (25mm) outside diameter.
Clearance between the towel bar and wall shall be 1-1/2" (38mm).
Concealed mounting flanges shall be 11-gauge (3.2mm) thick stainless steel plate, 2" x 3-1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall.
Flange covers shall be 22-gauge (0.8mm) stainless steel, 3-1/4" (85mm) diameter, and shall snap over mounting flanges to conceal mounting screws.
Ends of towel bar shall pass through flanges and be welded to form one structural unit.
Towel bar will support loads in excess of 900 pounds (408-kg) if properly installed.
For use in hospitals and hotel bathrooms.

Mounting Kits, Fasteners and Anchors are NOT included with Bobrick towel bars and must be ordered separately as an optional accessory:

MOUNTING KITS - Bobrick grab bar screw mounting kit available for different types of installations.
One mounting kit is required for each flange.
Bobrick Part No. 252-30 - Consists of (3) 1/4" x 2 1/2" type-304 stainless steel round-head sheet-metal screws.

FASTENERS: Bobrick WingIt™ grab bar fastening system secures grab bars installed without backing in wall. Fastener to be used with 2 1/2" or deeper hollow walls with finished wall surfaces 1/4" to 1 1/2" thick. The fastener will support 300 lbs load.
One fastener is required for each flange.
Bobrick Part No. 251-4 - Consists of (3) 10–32 x 5/16" round-head, Phillips 18/8 stainless steel screws and (1) WingIt grab bar fastener.

ANCHORS: Bobrick grab bar anchor used for mounting to toilet partition.
One anchor is required for each flange.
Bobrick Part No. 2583 - Consists of (1) anchor for 3/4" to 1" thick toilet partition panel and stainless steel machine screws.
Bobrick Part No. 2586 - Consists of (1) anchor for 1/2" thick toilet partition panel and stainless steel machine screws.

Safety Warning: Towel bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.
