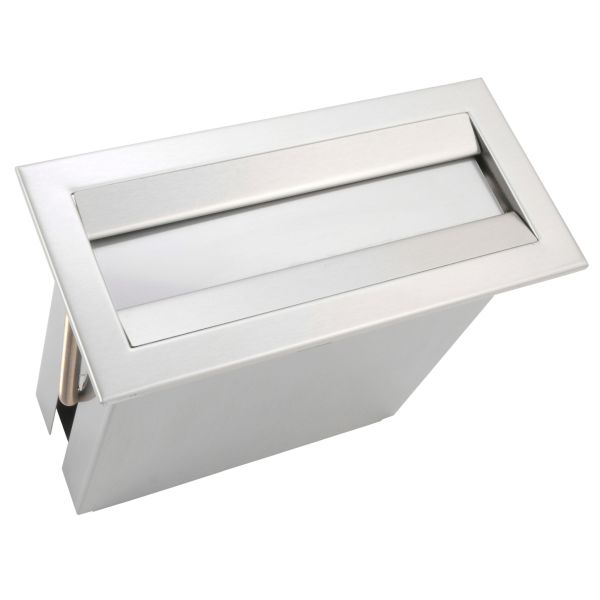

Bobrick B-526 Countertop Mounted Folded Paper Towel Dispenser

Bobrick B-526 Countertop Mounted Folded Paper Towel Dispenser

Bobrick TrimLineSeries™, Minimalistic Design Series

Paper towel dispenser for mounting in countertops is type-304 stainless steel with all welded construction; exposed surfaces have satin finish.
Flange has 1/4" (6mm) 90° return.
Paper towel dispenser is equipped with two hinged towel retainers and spring-loaded towel tray; capacity is 300 C-fold or multifold paper towels.
Paper towel dispenser accommodates C-fold and multifold paper towels without adjustment or adapters.
Patented push‑through design allows loading from the top by pushing towels downward into dispenser through the two hinged towel retainers.
Housing below countertop to conceal paper towel dispenser is not included with unit; must be furnished by others.
Unit is designed for installation in countertop; mount unit through a cutout specially ordered from countertop manufacturer or field cut.

Rough Countertop Cutout:
12-1/4" (310mm) Wide x 4-1/2" (115mm) High
3/4" to 1-1/2" (19 to 38mm) Mounting Thickness
17" (430mm) Minimum Clearance Below Mounting Surface
