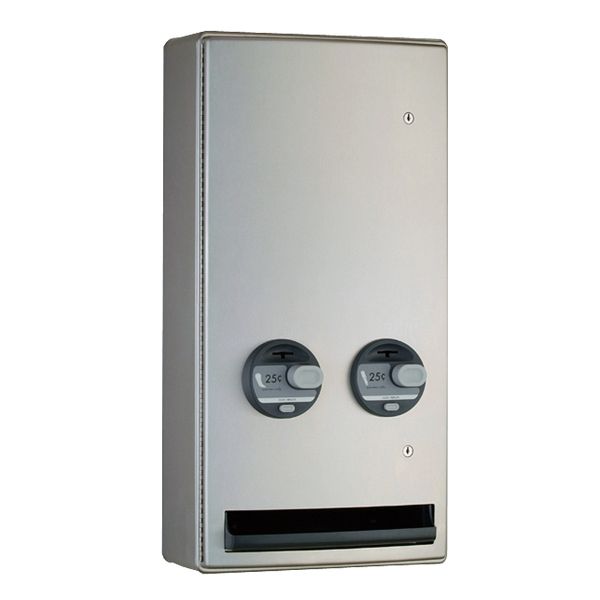

Bobrick B-47069 25 Surface Mounted Sanitary Napkin and Tampon Vendor 25¢ Operation

Bobrick B-47069 25 Surface Mounted Sanitary Napkin and Tampon Vendor 25¢ Operation

Bobrick ConturaSeries®, Curvilinear Design Series

Surface-Mounted sanitary napkin and tampon vendor combines two dispensing mechanisms in one cabinet to provide sanitary napkins and tampons at user’s option.
Mechanical operations; no batteries or electricity required.
Dispensing mechanisms are pre-set at factory for 25¢ Single-Coin operation, but is convertible in the field to allow the change of coin denomination without removing unit from wall.
Door is furnished with graphics indicating specified coin denomination.
Unit is Type-304 stainless steel with all-welded construction; exposed surfaces have #4 satin finish.
Stainless steel skirt has satin finish and 90° return on edges; radius on corners complement corners and edges of flange and door.
Front of door has same degree of arc and match other Bobrick ConturaSeries accessories in the washroom.
Radius on corners and edges of flange, skirt, and door complement other Bobrick ConturaSeries washroom accessories.
Flange is drawn, one-piece, seamless construction.
Door is drawn, 18-gauge (1.2mm), one-piece, seamless construction; secured to cabinet with a full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and two flush tumbler locks keyed like other Bobrick washroom accessories.
Vendor product selection and coin return pushbutton-operation is certified ADA ABA, ICC/ANSI A117.1 complaint for operation with one hand with less than 5 pounds of force (22.2 N) without tight grasping, pinching or twisting of the wrist.
Push-Button coin return cancels selection and returns coin into product tray.
Wrong coins (penny, nickel, dime) by-pass mechanisms and drop into product tray.
Coin slots are automatically blocked with a red indicator when supply is depleted.
Product tray is impact-resistant PC-ABS plastic and provides easy access to dispensed product.
Coin Box is equipped with a tumbler lock that is keyed differently than door locks.
Unit does not carry brand-name advertising.
Vendor dispenses sanitary napkin packages measuring 2-7/8" x 3/4" x 4-1/8" to 3-1/8" x 1-1/8" x 4-3/8" (73 x 19 x 105mm to 80 x 29 x 111mm) and tampon tubes measuring 4-5/8" long x 9/16" diameter minimum to 5-1/8" long x 3/4" diameter maximum (118 x 14 to 130 x 19mm).

Capacity: 20 Sanitary Napkins and 30 Tampons

Coin Operation Options: 25¢ Single-Coin

Overall Dimensions: 14-1/2" Wide x 28-1/2" High, Projects 7-1/8" From Finish Face of Wall

Replacement Door Lock and Key: Order Bobrick Part No. 43500-24
Replacement Coin Box Kit: Order Bobrick Part No. 3706-344
