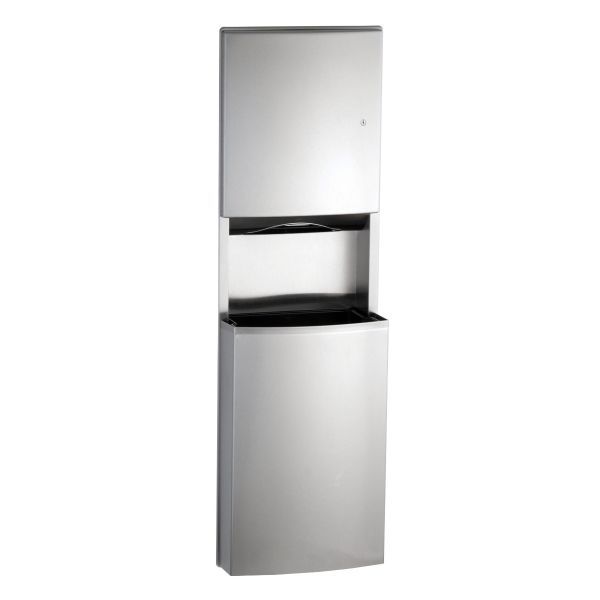

Bobrick B-43944 Recessed Folded Paper Towel Dispenser and Waste Receptacle

Bobrick B-43944 Recessed Folded Paper Towel Dispenser and Waste Receptacle

Bobrick ConturaSeries®, Curvilinear Design Series

Recessed folded paper towel dispenser and waste receptacle is Type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Front of paper towel dispenser door and waste receptacle has same degree of arc and match other Bobrick ConturaSeries accessories in the washroom.
Radius on corners and edges of flange, door, and waste receptacle complement other Bobrick ConturaSeries washroom accessories.
Flange is drawn, one-piece, seamless construction.
Paper towel dispenser door is drawn, one-piece, seamless construction; secured to cabinet with a full length stainless steel piano-hinge and equipped with a flush tumbler lock keyed like other Bobrick washroom accessories.
Paper towel dispenser shall dispense 600 C-fold or 800 multifold paper towels.
Unit is equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time.
Waste receptacle has a formed, 18-gauge (1.2mm), one-piece, seamless, removable front panel with top edge hemmed.
Unit is equipped with LinerMate trash liner holder fabricated with molded plastic trash liner holder sleeve and a 20-gauge (0.91mm) stainless steel, U-shaped support strap; riveted construction.
Trash liner holder has an arc at front and same shape as inside of waste receptacle area. LinerMate facilitates installation and removal of disposable trash liners and retains liner inside waste receptacle.
Capacity of waste receptacle is 15.0-gal. (56.8-L).

Waste Receptacle Capacity: 15 Gallons

Overall Dimensions: 17-7/16" Wide x 28" High, Projects 5" From Finish Face of Wall

Rough Wall Opening: 16" Wide x 54-3/4" High, 4" Minimum Recessed Depth

Replacement TowelMate® Accessory Module: Order Bobrick Part No. 3944-130
Replacement LinerMate® Accessory Module: Order Bobrick Part No. 43944-134

Replacement Lock and Key: Order Bobrick Part No. 43944-20

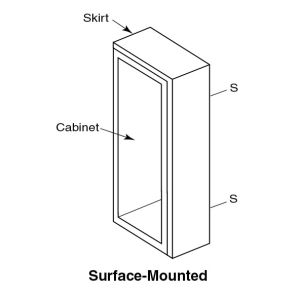

Skirt for Surface Mounting: Order Bobrick Part No. 43949-19
