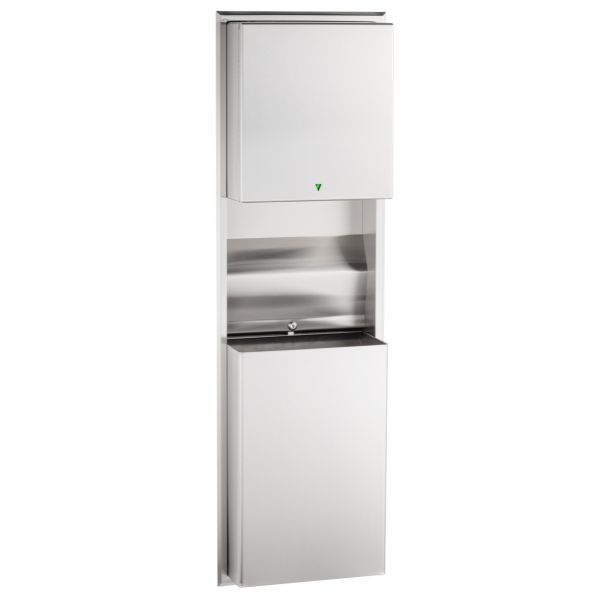

Bobrick B-3974 Recessed Convertible Automatic Roll Paper Towel Dispenser and Waste Receptacle

Bobrick B-3974 Recessed Convertible Automatic Roll Paper Towel Dispenser and Waste Receptacle

Bobrick ClassicSeries®, Economy-Budget Priced Series

Recessed convertible automatic universal roll paper towel dispenser and waste receptacle is Type-304 stainless steel with welded construction; exposed surfaces have satin-finish.
Flange is drawn and beveled, one-piece, seamless construction.
Door is secured to cabinet with a full-length stainless steel piano-hinge and equipped with a concealed tumbler lock keyed like other Bobrick washroom accessories.
No-touch dispenser, equipped with an intuitive LED light to direct patrons to the dispense area, dispenses universal, 1-1/2" to 2" (38 to 51mm) diameter core, up to 8" (205mm) diameter, 8" (205mm) wide, non-perforated, non-proprietary paper towel rolls, 800 ft (244 m) long.
Dispenser automatically dispenses towel when hands are placed under the towel opening.
Dispenser can be powered by 4 “D” size alkaline batteries (not included) or an optional 6-volt AC to DC power supply, Bobrick Part No. 3974-57.
Equipped with switches that allow paper length to be set at 10" (255mm), 12" (305mm) or 14" (355mm).
Adjustable (2", 3.5", 4") electronic sensor automatically dispenses towel when hands are placed under the towel opening.
LED light on the door flashes green when dispenser is ready to dispense, flashes slowly red to indicated it needs paper and red and green (alternating) to indicate low battery.
Automatic transfer dispenses stub roll up to 3-1/2" (90mm) diameter before new main roll is automatically dispensed.
Removable waste receptacle is secured to cabinet with a tumbler lock, edges hemmed for safe handling, and have a minimum capacity of 12-gal. (45.5-L).
To adapt to changing needs of washrooms, this unit is equipped with an interchangeable paper towel dispenser and waste receptacle.

Waste Receptacle Capacity: 12 Gallons

Overall Dimensions: 17-3/16" Wide x 56" High, Projects 5-1/8" From Finish Face of Wall

Rough Wall Opening: 16" Wide x 54-3/4" High, 4" Minimum Recessed Depth

Interchangeable Towel Dispenser: Unit is equipped with an interchangeable towel dispenser module that allows for field conversion from and to automatic roll towel, touch-free pull towel, and folded towel.
Reference Bobrick models 3974-350 (Automatic), 3961-50 (Pull), 3944-152 (Folded).

Interchangeable Waste Receptacles: Unit is equipped with an interchangeable waste receptacle that allows for field conversion from and to 6, 12 or 18 gallon waste receptacles based on changing traffic and usage needs.
Reference Bobrick models 366-60 (6 Gallons), 367-60 (12 Gallons), 368-60 (18 Gallons).

LinerMate® is available as an optional accessory that allows installation and removal of waste receptacle disposable liners without unsightly liner overhang: Order Bobrick Part No. 3944-134

Replacement Door Lock and Key: Order Bobrick Part No. 3500-100
Replacement Waste Receptacle Lock and Key: Order Bobrick Part No. 3944-41

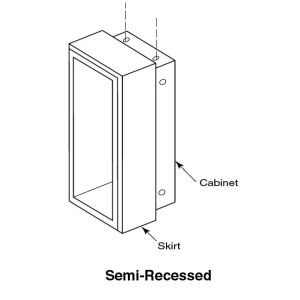

Skirt for Semi-Recessing: Order Bobrick Part No. 3942-57
Skirt for Surface Mounting: Order Bobrick Part No. 3949-57

AC External 6 Volt Adapter is available as an optional accessory that can be ordered to eliminate the use of batteries: Order Bobrick Part No. 3974-57
