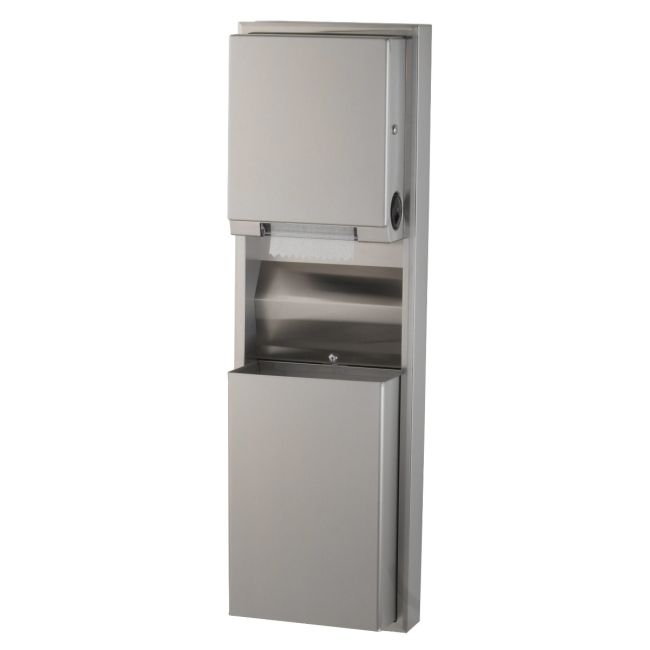

Bobrick B-39619 Surface Mounted Convertible Roll Paper Towel Dispenser and Waste Receptacle

Bobrick B-39619 Surface Mounted Convertible Roll Paper Towel Dispenser and Waste Receptacle

Bobrick ClassicSeries®, Economy-Budget Priced Series

Surface Mounted convertible touch-free roll paper towel dispenser and waste receptacle is Type-304 stainless steel with welded construction; exposed surfaces have satin finish.
Skirt for surface mounting is Type-304, 22-gauge (0.8mm) stainless steel with satin finish.
Flange is drawn and beveled, one-piece, seamless construction.
Door is secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Towel mechanism accommodates up to 8" (205mm) wide, 8" (205mm) diameter, nonperforated paper towel rolls, 800 ft (244mm) long.
Touch-Free pull towel mechanism dispenses one 12" (300mm) length of towel per pull.
User only touches the paper.
Automatic transfer dispenses stub roll up to 3-1/2" (90mm) diameter before new roll is dispensed.
Equipped with paper towel feed wheel for use in filling the dispenser or for user to advance paper should it become necessary to feed paper through dispenser.
Paper towels are dispensed with pull force of less than 5 pounds (22.2 N) to comply with accessible design (including ADAAG in U.S.A.).
Removable waste receptacle is secured to cabinet with a tumbler lock, has front and side edges of bottom and all top edges hemmed for safe handling and has a minimum capacity of 12-gal. (45.5-L).
To adapt to changing needs of washrooms, this unit is equipped with an interchangeable paper towel dispenser and waste receptacle.

Waste Receptacle Capacity: 12 Gallons

Overall Dimensions: 17-1/2" Wide x 56-5/16" High, Projects 9-1/4" From Finish Face of Wall

Interchangeable Towel Dispenser: Unit is equipped with an interchangeable towel dispenser module that allows for field conversion from and to automatic roll towel, touch-free pull towel, and folded towel.

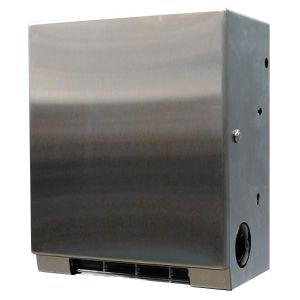

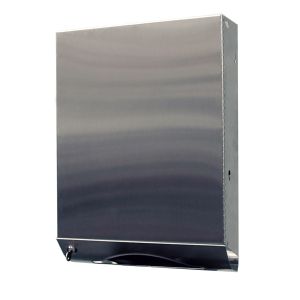

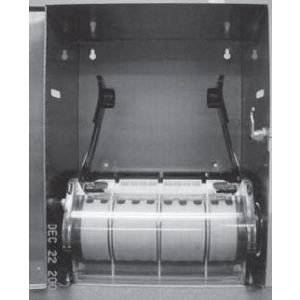

Reference Bobrick models 3974-350 (Automatic), 3961-50 (Pull), 3944-152 (Folded).

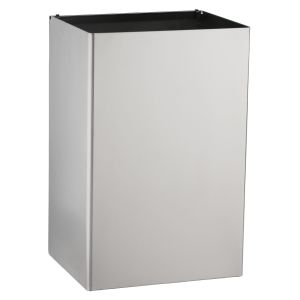

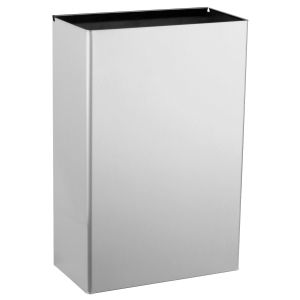

Interchangeable Waste Receptacles: This unit is equipped with an interchangeable waste receptacle. Change from 12 and 18 gallon waste receptacles based on changing traffic and usage needs. Reference Bobrick models 367-60 (12 Gallons), 368-60 (18 Gallons).

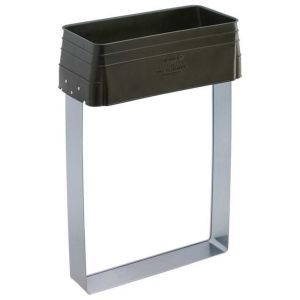

LinerMate® is available as an optional accessory that facilitates installation and removal of waste receptacle disposable liners without unsightly liner overhang: Order Bobrick Part No. 3944-134

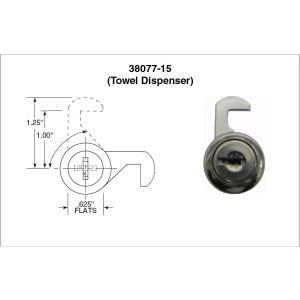

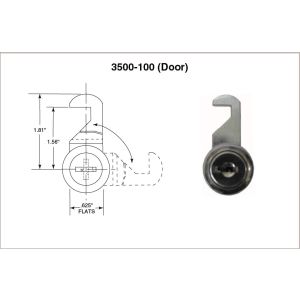

Replacement Towel Dispenser Lock and Key: Order Bobrick Part No. 38077-15 (Old Door), 3500-100 (New Door)

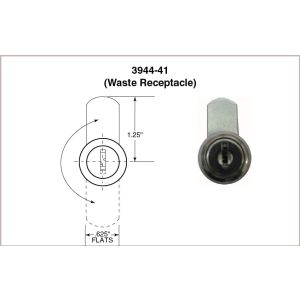

Replacement Waste Receptacle Lock and Key: Order Bobrick Part No. 3944-41

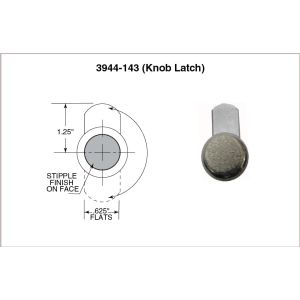

Optional Knob Latch to Replace Lock: Order Bobrick Part No. 3944-143
