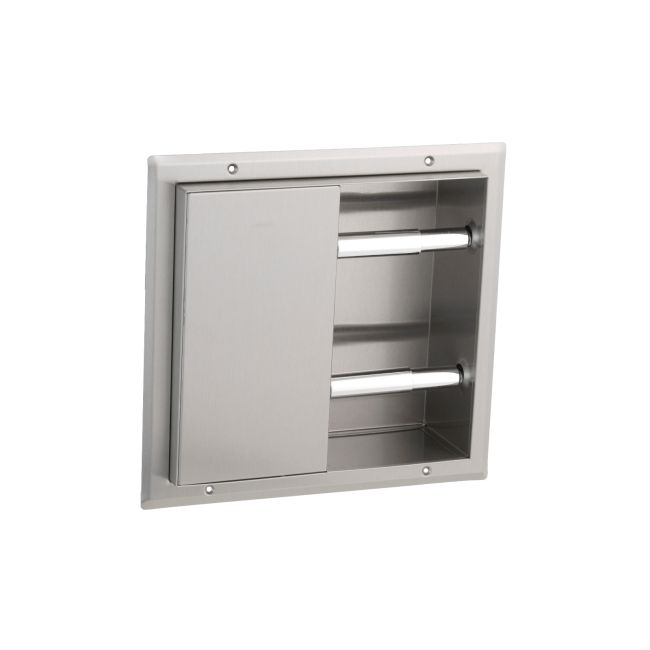

Bobrick B-386 Partition Mounted Dual Sided Multi Roll Toilet Tissue Dispenser

Bobrick B-386 Partition Mounted Dual Sided Multi Roll Toilet Tissue Dispenser

Partition-mounted dual-sided multi-roll toilet tissue dispenser is Type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Flanges are drawn and beveled, one piece, seamless construction.
Unit mounts in toilet partition and serves two toilet compartments.
Chrome-plated plastic spindles are equipped with heavy-duty internal springs.
Unit holds four standard-core toilet tissue rolls up to 5 1/8" (130mm) diameter (1500 sheets), two for each compartment.
Spindles may be removed from each compartment for servicing.

Overall Dimensions: 13 1/4" Wide x 12 9/16" High, Projects 1 1/2" From Finish Face of Toilet Partition
Rough Partition Cutout: 11 1/2" Wide, 10 7/8" High, 1/2" to 2" Partition Thickness

Replacement Chrome Plated Spindle: Order Bobrick Part No. 283-504
Replacement Theft Resistant Spindle: Order Bobrick Part No. 283-604

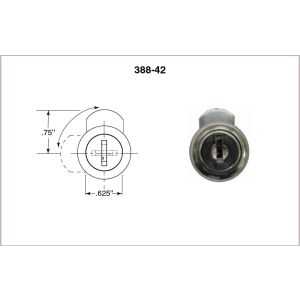

Replacement Lock and Key: Order Bobrick Part No. 388-42
