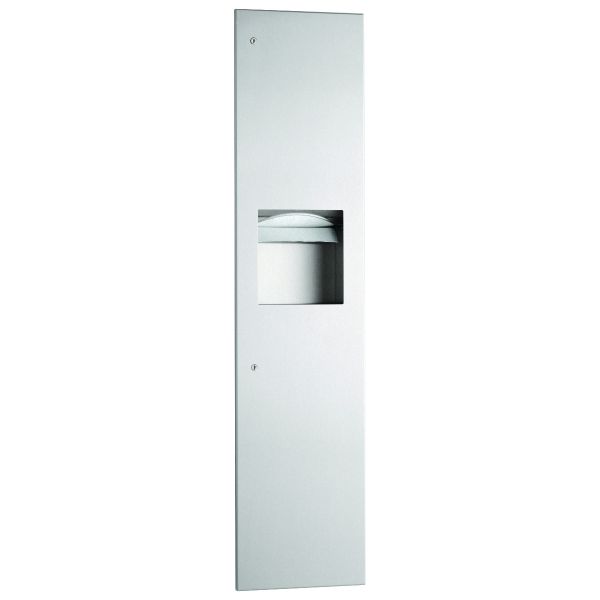

Bobrick B-38034 Recessed Folded Paper Towel Dispenser and Waste Receptacle

Bobrick B-38034 Recessed Folded Paper Towel Dispenser and Waste Receptacle

Bobrick TrimLineSeries™, Minimalistic Design Series

Recessed folded paper towel dispenser and waste receptacle is Type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Unit is equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time.
Door is 18 gauge (1.2mm); has 9/16" (14mm) 90° return edges; secured to cabinet with a concealed, full-length, stainless steel piano-hinge and equipped with two tumbler locks keyed like other Bobrick washroom accessories.
Tumbler locks flush with the door, no protrusion.
Paper towel dispenser dispenses 600 C-fold or 800 multifold paper towels.
Waste receptacle is furnished with a removable, leak-proof, rigid molded plastic waste-container with a capacity of 3.8-gal. (14.4-L).

Waste Receptacle Capacity: 3.8 Gallons

Overall Dimensions: 13" Wide x 55-1/8" High, Projects 9/16" From Finish Face of Wall

Rough Wall Opening: 11-1/2" Wide x 53-5/8" High, 3-3/4" Minimum Recessed Depth

Replacement TowelMate® Accessory Module: Order Bobrick Part No. 3944-130

Replacement Lock and Key: Order Bobrick Part No. 39003-21

Replacement Waste Receptacle: Order Bobrick Part No. 38074-15

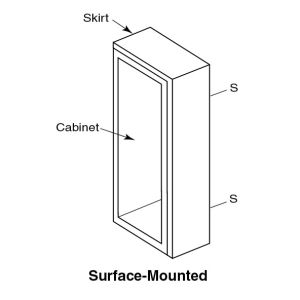

Skirt used for Surface Mounting a Recessed unit: Order Bobrick Part No. 380349-57
