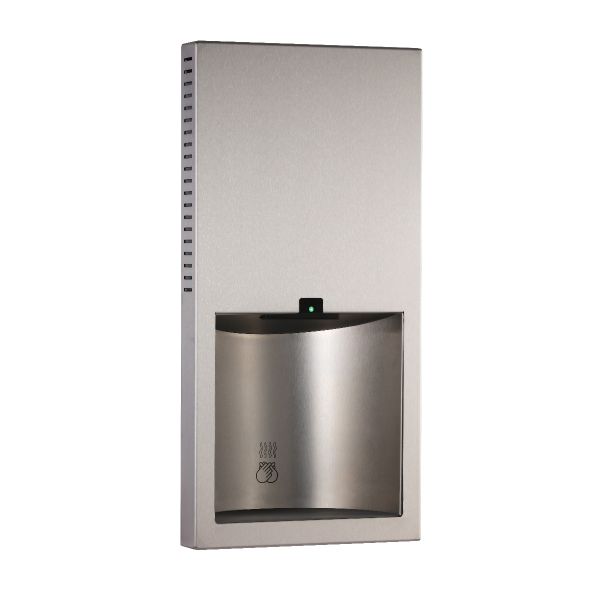

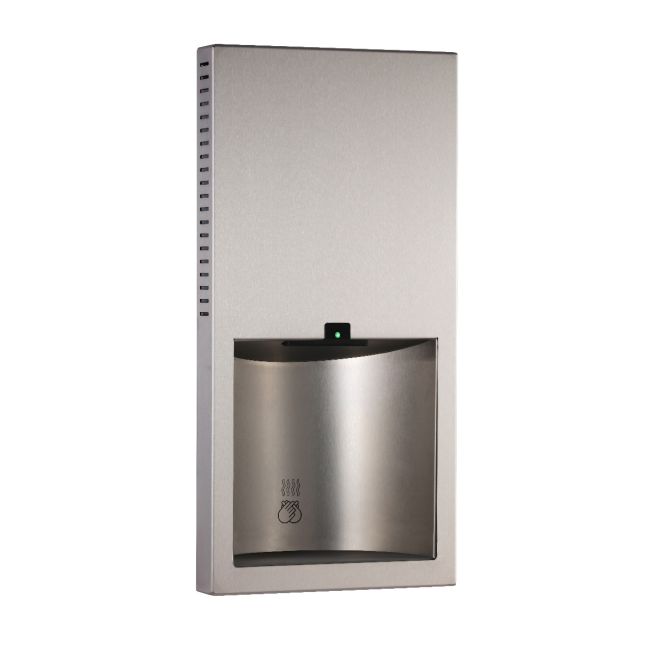

Bobrick B-3725 230V TrimLineSeries™ Recessed Automatic Hand Dryer

Bobrick B-3725 230V TrimLineSeries™ Recessed Automatic Hand Dryer

Bobrick TrimLineSeries™, Minimalistic Design Series

Recessed automatic 230 volt hand dryer with a 6" deep drying alcove to capture dripping water shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish.
Cover shall be 18-gauge (1.2mm) with a 2" (51mm) projection from the wall.
All welded corners secured to cabinet with vandal-resistant screws.
Directed air nozzle shall prevent dryer from splashing water on the floor and or user.
Hand drying alcove is equipped with a ceramic water absorbent surface to capture and evaporate water.
Fan housings shall be fire-retardant molded black plastic.
Motor shall be 1/7 hp, universal type equipped with automatic thermal-overload switch.
Heating elements shall be located on outlet side of fan, shall heat air without hot spots, be inaccessible to vandals, and protected by an automatic thermal-overload switch.
Dryer shall turn off automatically when hands are removed.
LED will flash green when the dryer is ready, is solid green when the dryer is being used and is solid red when the dryer is not ready.
Unit shall be CE marked and cUListed.

Voltage: 230V

Hand Dryer Measurement: 11 13/16" Wide x 24 1/16" High, Extends 2" from Wall

Rough Wall Opening: 10 7/8" (277mm) Wide x 23" (585mm) High, 4" (100mm) Minimum Recessed Depth

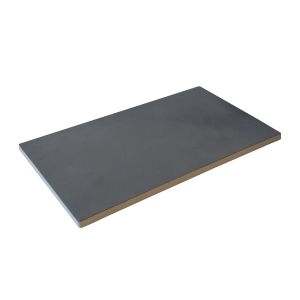

Replacement Ceramic Water Absorbent Surface: Order Bobrick Part No. 3725-23
