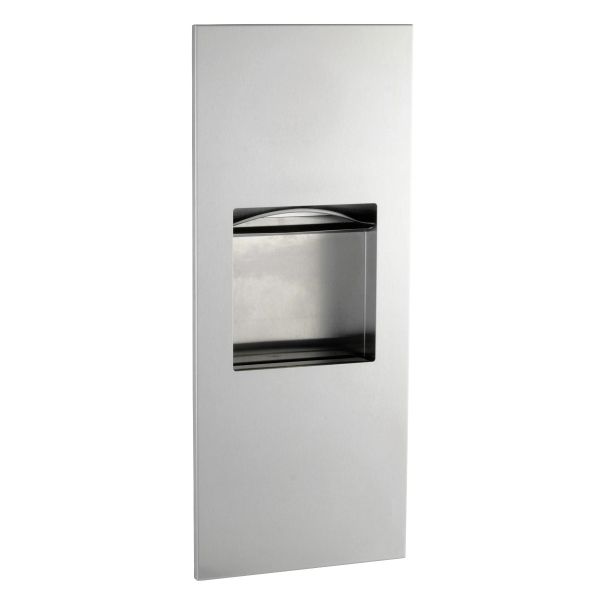

Bobrick B-36903 Recessed Folded Paper Towel Dispenser and Waste Receptacle

Bobrick B-36903 Recessed Folded Paper Towel Dispenser and Waste Receptacle

Bobrick TrimLineSeries™, Minimalistic Design Series

Recessed folded paper towel dispenser and waste receptacle is Type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Unit is equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time.
Door is 18 gauge (1.2mm) has 9/16" (14mm) 90° return edges, secured to cabinet with a concealed full-length stainless steel piano-hinge and equipped with a stainless steel cable door-swing limiter and friction catch.
Door conceals flange from view.
Paper towel dispenser is capable of dispensing 300 C-fold or 400 multifold paper towels without adjustment or use of adapters.
Waste receptacle is serviced by opening door and removing waste container.
Waste receptacle is furnished with a removable, leakproof, rigid molded plastic waste-container with a capacity of 1.6-gal. (6.1-L).

Waste Receptacle Capacity: 1.6 Gallons

Overall Dimensions: 13" Wide x 31-1/8" High, Projects 9/16" From Finish Face of Wall

Rough Wall Opening: 11-1/2" Wide x 29-1/2" High, 3-3/4" Minimum Recessed Depth

Replacement TowelMate® Accessory Module: Order Bobrick Part No. 369-130

Replacement Waste Receptacle: Order Bobrick Part No. 36907-15
