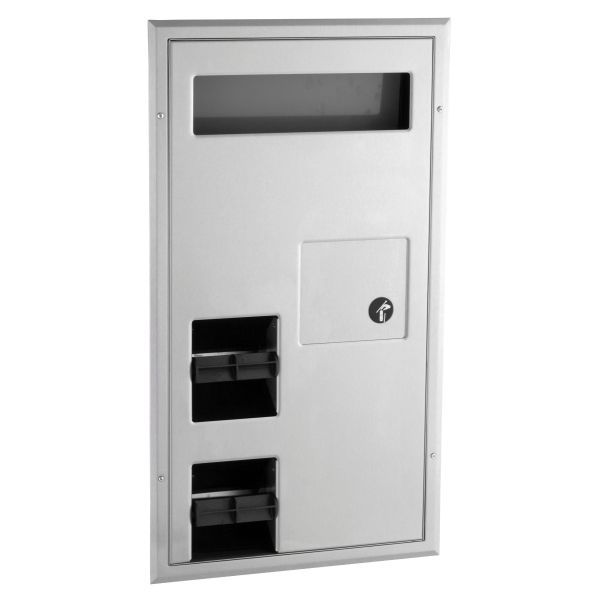

Bobrick B-3571 Partition Mounted Toilet Tissue Seat Cover Dispenser and Waste Disposal

Bobrick B-3571 Partition Mounted Toilet Tissue Seat Cover Dispenser and Waste Disposal

Bobrick ClassicSeries®, Economy-Budget Priced Series

Partition mounted toilet seat cover dispenser, sanitary napkin disposal and toilet tissue dispenser combination unit is Type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Combination unit mounts centered through toilet partition; serves two toilet compartments and is serviced from one side.
One side is flush against toilet partition to allow clearance for horizontal grab bar across front of unit and installation of 18" vertical grab bar.
Toilet tissue dispenser is ABS plastic.
Flanges are drawn and beveled, one-piece, seamless construction.
Unit mounts in toilet partition and serves two toilet compartments.
Door is one-piece, seamless construction; secured to cabinet with a full-length stainless steel piano-hinge and equipped with two tumbler locks keyed like other Bobrick washroom accessories.
Self-closing disposal panels are secured to cabinet with spring-loaded, full-length stainless steel piano-hinges, have hemmed edges and equipped with international graphic symbols identifying napkin disposal.
Napkin disposal is furnished with a removable, leak-proof, molded polyethylene receptacle with a capacity of 0.8-gal. (3.0-L).
Toilet-seat-cover dispenser and sanitary napkin disposal are serviced from one side only. Toilet-seat-cover dispenser is equipped with a plastic sight-barrier panel and holds 250 paper covers.
Unit is equipped with four theft-resistant, heavy-duty ABS toilet tissue spindles that hold standard-core rolls up to 5-1/4" (135mm) diameter (1800 sheets).
Spindles are removable from cabinet when door is open; when door is closed, removal shall require a special key provided for the concealed locking mechanism in spindles.

Waste Receptacle Capacity: 0.8 Gallons

Overall Dimensions: 17-3/16" Wide x 30-5/8" High

Rough Partition Cutout: 15-1/2" Wide x 28-7/8" High, 1/2" to 3-7/8" Partition Thickness

Replacement Lock and Key: Order Bobrick Part No. 3803-5
Optional Knob Latch: Order Bobrick Part No. 314370-22

Replacement Spindle: Order Bobrick Part No. 4288-9
Replacement Theft Resistant Spindle: Order Bobrick Part No. 283-604

Replacement Waste Receptacle: Order Bobrick Part No. 357-48
