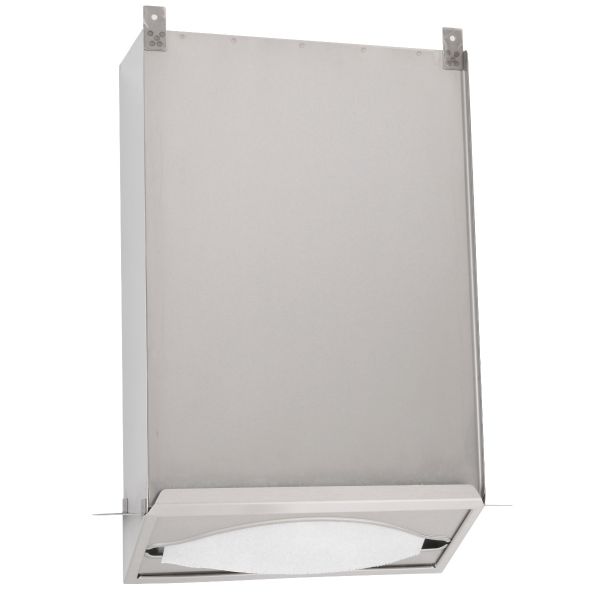

Bobrick B-318 Concealed Recessed Folded Paper Towel Dispenser

Bobrick B-318 Concealed Recessed Folded Paper Towel Dispenser

Recessed folded paper towel dispenser is type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Paper towel tray is equipped with two self-closing piano-hinged panels.
Paper towel dispenser will dispense C-fold or multifold paper towels without adjustment or the use of adapters.
Only the paper towel tray is visible when properly installed.
Unit is loaded from bottom by pushing towels up through self-closing panels of paper towel tray.
Unit shall dispense 600 C-fold or 800 multifold paper towels without adjustment or use of adapters.

Model B-318 is designed for installation in wall prior to installation of surface-mounted framed or unframed mirror (not furnished). Bobrick B-290 Series stainless steel angle-frame mirrors are suggested for installation in combination with Model B-318. For standard installations, it is recommended that the unit be located between two lavatories. Installation in a non-mirror side wall is recommended where access is needed by physically disabled persons.

Overall Dimensions: 11-7/16" Wide x 18" High, 4-5/16" Deep

Rough Wall Opening:
12" (305mm) wide
18-1/4" (465mm) high to accept cabinet height plus
6" (152mm) minimum clearance below cabinet
4-1/2" (114mm) minimum recessed depth plus thickness of wall finish
