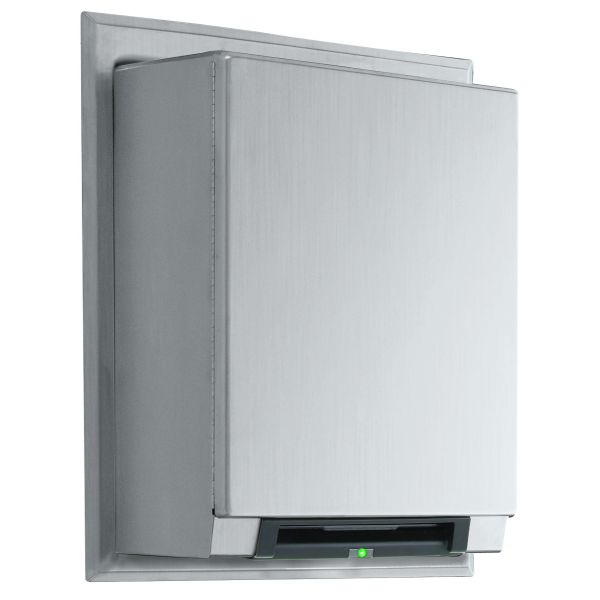

Bobrick B-29744 Semi-Recessed Automatic Roll Paper Towel Dispenser

Bobrick B-29744 Semi-Recessed Automatic Roll Paper Towel Dispenser

Semi-Recessed automatic universal roll paper towel dispenser is Type-304 stainless steel with all-welded construction; exposed surfaces have satin finish.
Door is secured to cabinet with a full length stainless steel piano-hinge and equipped with a concealed tumbler lock keyed like other Bobrick washroom accessories.
No-touch dispenser, equipped with an intuitive LED light to direct patrons to the dispense area, dispenses universal, 1-1/2" to 2" (38 to 51mm) diameter core, up to 8" (205mm) diameter, 8" (205mm) wide, non-perforated, non-proprietary paper towel rolls 800 ft (244 m) long.
Dispenser automatically dispenses towel when hands are placed under the towel opening. Unit is equipped with switches that allow paper length to be set at 9" (230mm), 12" (305mm) or 15" (380mm) and “Paper Saver” feature that provides a shorter second sheet with options of 25% shorter and 12.5% shorter.
LED light at the towel opening flashes green when dispenser is ready to dispense, flashes orange, indicating low battery, flashes red if not ready to dispense or in need of service.
Automatic transfer shall dispense stub roll up to 3-1/2" (90mm) diameter before new roll is dispensed.
Dispenser is powered by 4 “D” size alkaline batteries (not furnished) or an optional 6-volt AC to DC power supply (not furnished).

Overall Dimensions: 17-3/16" Wide x 20-1/4" High, Projects 5-1/8" From Finish Face of Wall

Rough Wall Opening: 16" Wide x 18-7/8" High, 4" Minimum Recessed Depth

AC External 6 Volt Adapter is available as an optional accessory that can be ordered to eliminate the use of batteries: Order Bobrick Part No. 3974-57

Replacement Lock and Key: Order Bobrick Part No. 3500-100
