Bobrick B-294 Tilting Mirrors

Bobrick B-294 Tilting Mirrors

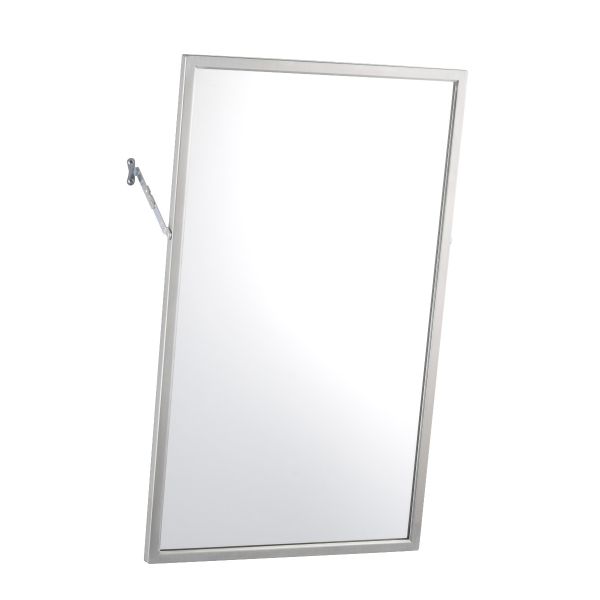

Angle-Frame two position tilt mirror self-locking operation of folding brackets holds mirror flush to wall.
Mirror can easily be tilted forward and secured to provide full visibility for wheelchair patients in hospitals and nursing homes.
Tilting mirror shall have a one-piece type 304 stainless steel angle frame, 3/4" x 3/4" (19 x 19mm) with continuous integral stiffener on all sides and beveled front to hold frame tightly against mirror; corners shall be welded, ground, and polished smooth; all exposed surfaces shall have satin finish with vertical grain.
Frame shall be equipped with full-width stainless steel piano-hinge welded to bottom and two heavy-gauge plated-steel folding support brackets that lock mirror in upright or forward tilt position.
Select float glass mirror shall be guaranteed for 15 years against silver spoilage.
All edges shall be protected by plastic filler strips.
Back shall be protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding.
Galvanized steel back shall be secured to frame with concealed screws.
Top of mirror tilts 7" (180mm) from wall with self-locking mechanisms; bottom of mirror mounts to wall with full-length stainless steel hinge.
Mounting screws are NOT furnished.

Bobrick Mirror Measurements are Width x Height

SPECIAL SHIPPING REQUIREMENTS: Glass two position tilt mirrors will only be shipped by freight truck.

CUSTOM MIRRORS NOTICE: Washroom Direct Sales does not sell any custom size mirrors. The only mirrors available for purchase are the manufacturer’s standard stock mirrors.
