Bobrick B-293 Fixed Tilt Mirrors

Bobrick B-293 Fixed Tilt Mirrors

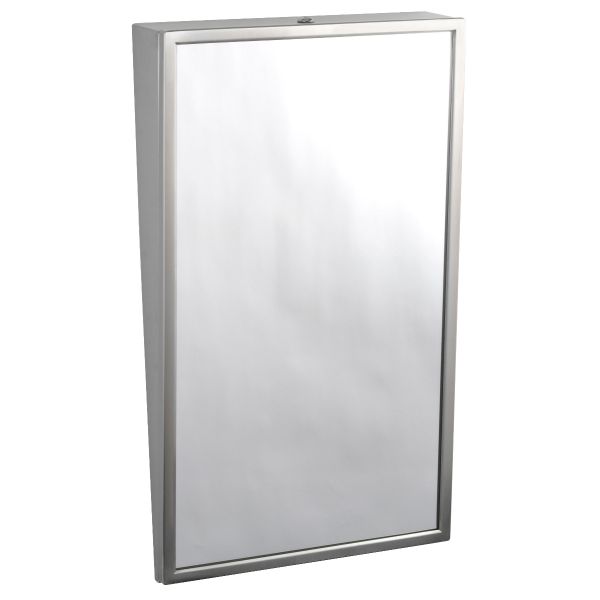

Fixed tilt mirror is designed to provide full visibility for wheelchair patients in hospitals and nursing homes.
Tilt mirror assembly shall consist of a mirror and a separate wall frame with built-in wall hanger.
Wall frame furnished with tumbler lock for securing mirror to wall frame.
Tilt mirror frame shall be type 304 stainless steel with beveled front to hold frame tightly against mirror; corners shall be welded, ground, and polished smooth.
Wall frame shall be type 304 stainless steel designed with horizontal locking bars to secure mirror to wall frame.
All exposed surfaces shall have satin finish with vertical grain.
Mirror is No. 1 quality, 1/4" (6mm) select float glass, selected for silvering; electrolytically copper-plated by the galvanic process, guaranteed for 15 years against silver spoilage.
All edges shall be protected by plastic filler strips.
Back shall be protected by full-size, shock-absorbing, waterresistant, nonabrasive, 1/8" (3mm) thick polystyrene padding.
Mirror extends 4″ (100mm) from wall at top and tapers to 1″ (25mm) at bottom.
Mounting screws are NOT furnished.

Bobrick Mirror Measurements are Width x Height

SPECIAL SHIPPING REQUIREMENTS: Glass tilt mirrors measuring 42" or larger will only be shipped by freight truck.

CUSTOM MIRRORS NOTICE: Washroom Direct Sales does not sell any custom size mirrors. The only mirrors available for purchase are the manufacturer’s standard stock mirrors.
