Bobrick B-2892 Surface Mounted Twin Jumbo Roll Toilet Tissue Dispenser

Bobrick B-2892 Surface Mounted Twin Jumbo Roll Toilet Tissue Dispenser

Bobrick ClassicSeries®, Economy-Budget Priced Series

Surface-mounted jumbo-roll toilet tissue dispenser door and cabinet is type-304 stainless steel with satin-finish; door is 18 gauge (1.2mm); cabinet is 20 gauge (1.0mm).
Cabinet is equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Door has a wide viewing slot to reveal toilet tissue supply inside cabinet.
Door unlocks with key provided and swings down for loading dispenser.
Dispensing mechanism constructed of high-impact ABS accommodates two toilet tissue rolls up to 10" (255mm) diameter with 3" (75mm) diameter core.
Spindles are convertible in the field to dispense 2-1/4" (55mm) diameter core rolls by removing outer spindles furnished in place.
Unique sliding access panel exposes one roll at a time for patron use, assuring uninterrupted, complete no-waste use of first roll before starting the reserve roll; allows easy roll change-over.
When first roll is depleted, move the lever at the bottom of dispenser to the left until sliding access panel locks in position and exposes roll on right.
When door is opened for reloading, the sliding access panel automatically releases and returns to the original position on the right.
Move the remaining roll to the first position on left and install a new roll on the right spindle.
Unit is designed for quick reloading.

Overall Dimensions: 20 3/16" Wide x 11 3/8" High, Projects 5 5/16" From Finish Face of Wall

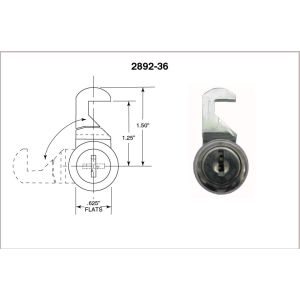

Replacement Lock and Key: Order Bobrick Part No. 2892-36
